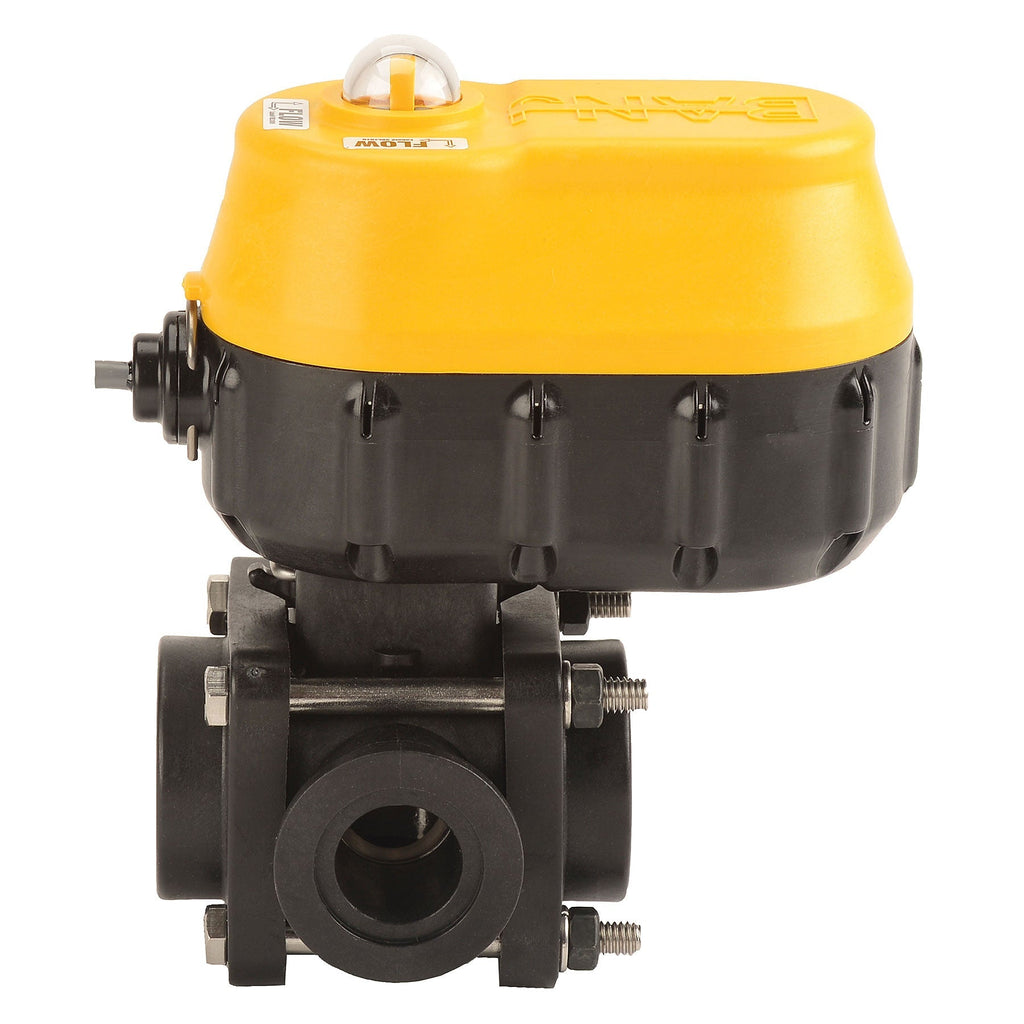

3/4 in. Full Port Side Load 12-Volt DC Electric Valve Bolted

• 12-volt DC operated

• 24-volt available - special order contact sales

• Open/closed indicator

• 1 in. & 1-1/4 in. On/Off has 3/4 second response

• 1-1/2 in. & 2 in. On/Off has 1-1/2 second response

• Open / Close verification available

• IP68 waterproof

• -0 to 150F (-18 to 65C) operating

• -67 to 221F (-55 to 105C) storage On/Off Actuator rated to 500,000 cycles

• Valve rated to 50,000 cycles leak-free

• These bolted valves have the exact same dimensions as our legacy EV valves.

• Additional protocols available including CAN/ISO BUS, Proportional Control and PWM


MATERIALS

• 316 stainless steel ball and stem

• Stainless steel hardware

• Fiberglass reinforced polypropylene

• PTFE seats

• FKM stem seals


On/Off

• Red = +12V DC

• Black = Ground

• White = +12VDC (Open) / 0VDC (Close)


4 Wire Regulating

• Red = +12V DC (Open)

• White = Ground (Open)

• Black = +12V DC (Close)

• Green = Ground (Close)


Note: This item is Special Order / Non-Cancellable / Non-Returnable
