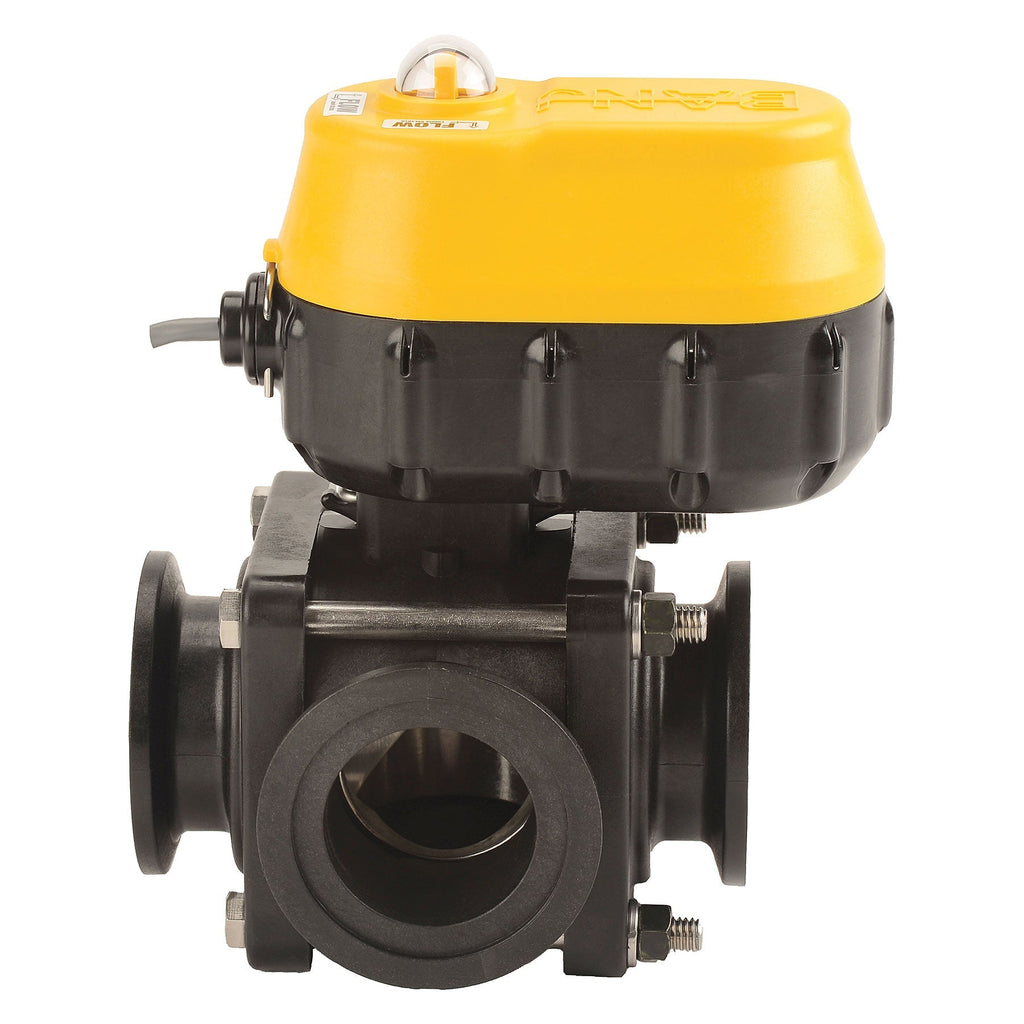

2 in. Standard Port Manifold Side Load 12-Volt DC Regulating Electric Valve Bolted

BanjoSKU: MEVXR200SL

Price:
Sale price$521.11
Stock:
Non-Stock Item - Ordered as needed. Contact us if you need more information.

Product has been added to your cart

Please input the Quantity!

Description

  • 12-volt DC operated
  • 24-volt available - special order contact sales
  • Open/closed indicator
  • On/Off 1 in. has 3/4 second response
  • On/Off 2 in. has 1-1/2 second response
  • On/Off 3 in. has 4 second response
  • Open / Close verification available
  • IP68 waterproof
  • -0 to 150F (-18 to 65C) operating
  • -67 to 221F (-55 to 105C) storage
  • 1 in.-2 in. On/Off Actuator rated to 500,000 cycles
  • 3 in. On/Off & RegulatingActuator rated to 250,000 cycles
  • Valve rated to 50,000 cycles leak-free
  • Additional protocols available including CAN/ISO BUS, Proportional Control and PWM
MATERIALS
  • 316 stainless steel ball & stem
  • Stainless steel hardware
  • Fiberglass reinforced polypropylene
  • Zinc alloy lower actuator housing (3 in. only)
  • PTFE seats
  • FKM stem seals
On/Off
  • Red = +12V DC
  • Black = Ground
  • White = +12VDC (Open) / 0VDC (Close)
4 Wire Regulating
  • Red = +12V DC (Open)
  • White = Ground (Open)
  • Black = +12V DC (Close)
  • Green = Ground (Close)
