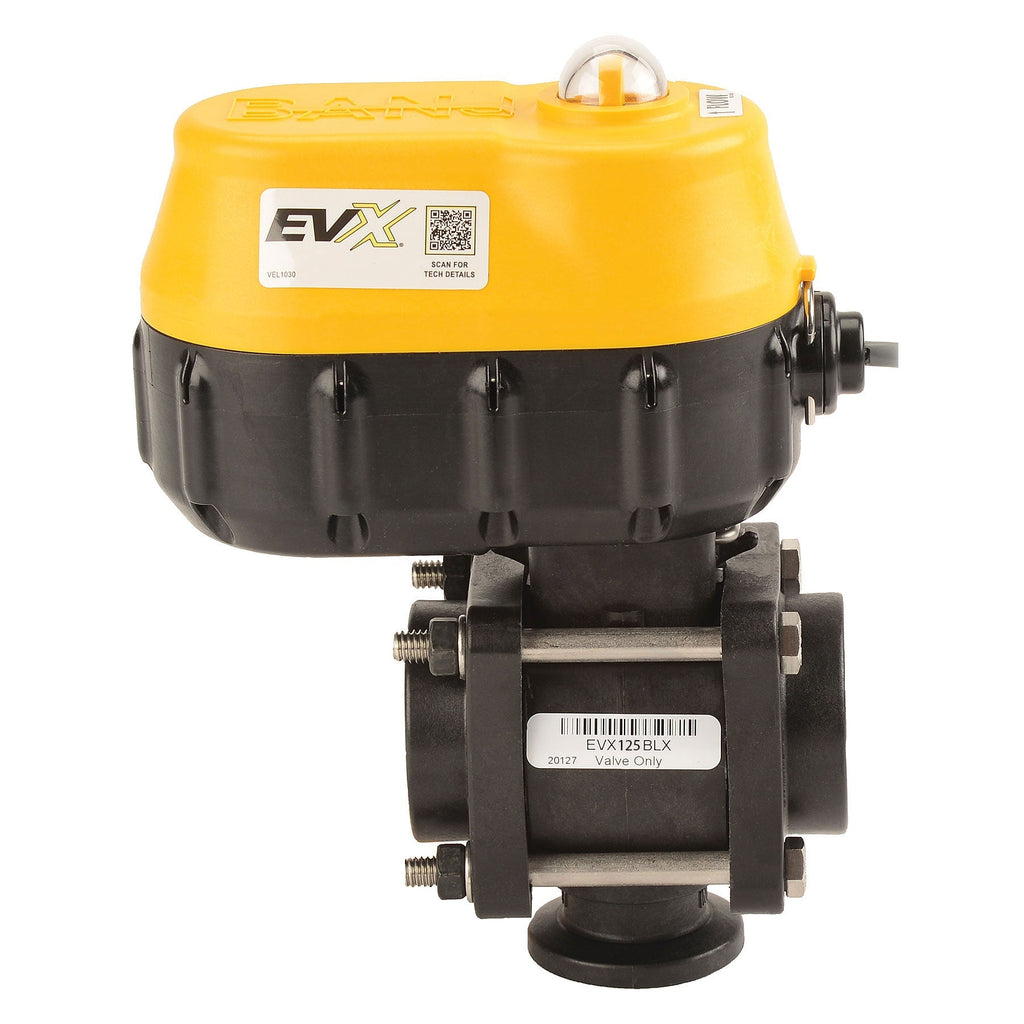

1-1/4 in. Full Port Bottom Load Electric Valve

BanjoSKU: EVX125BL
No reviews

Price:
Sale price$381.89

Description

FEATURES
  • 12-volt DC operated
  • 24-volt available
  • Open/closed indicator
  • 1 in. & 1-1/4 in. On/Off has 3/4 second response
  • 1-1/2 in. & 2 in. On/Off has 1-1/2 second response
  • Open / Close verification available
  • IP68 waterproof
  • -0 to 150F (-18 to 65C) operating
  • -67 to 221F (-55 to 105C) storage On/Off Actuator rated to 500,000 cycles
  • Valve rated to 50,000 cycles leak-free
  • These bolted valves have the exact same dimensions as our legacy EV valves.
  • Additional protocols available including CAN/ISO BUS, Proportional Control and PWM
MATERIALS
  • 316 stainless steel ball and stem
  • Stainless steel hardware
  • Fiberglass reinforced polypropylene
  • PTFE seats
  • FKM stem seals
On/Off
  • Red = +12V DC
  • Black = Ground
  • White = +12VDC (Open) / 0VDC (Close)
4 Wire Regulating
  • Red = +12V DC (Open)
  • White = Ground (Open)
  • Black = +12V DC (Close)
  • Green = Ground (Close)

Downloads

No downloads available for this product.
